E30 FOTO very nice!

Pondelok, 18. Februára 2008, 23:13

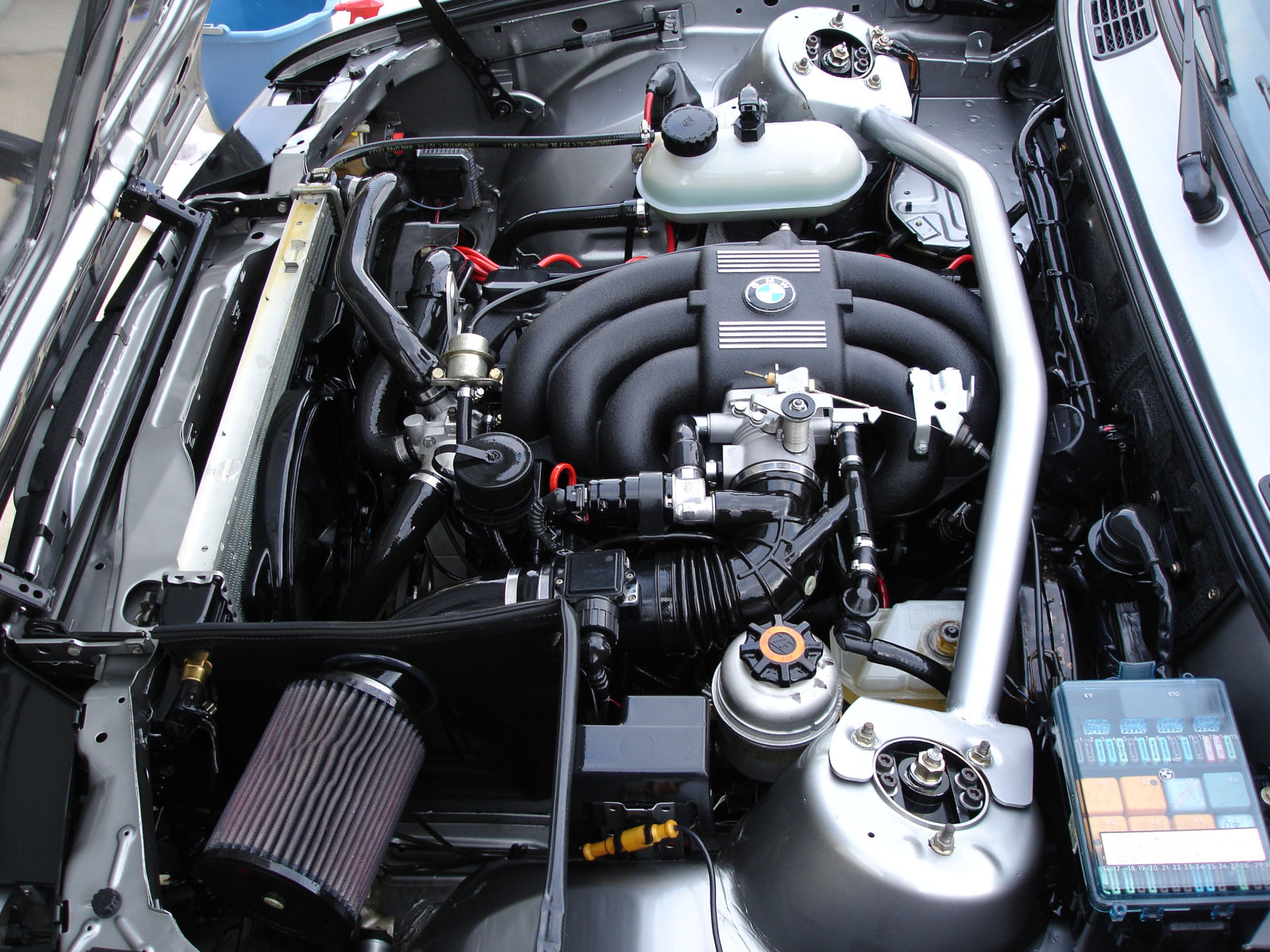

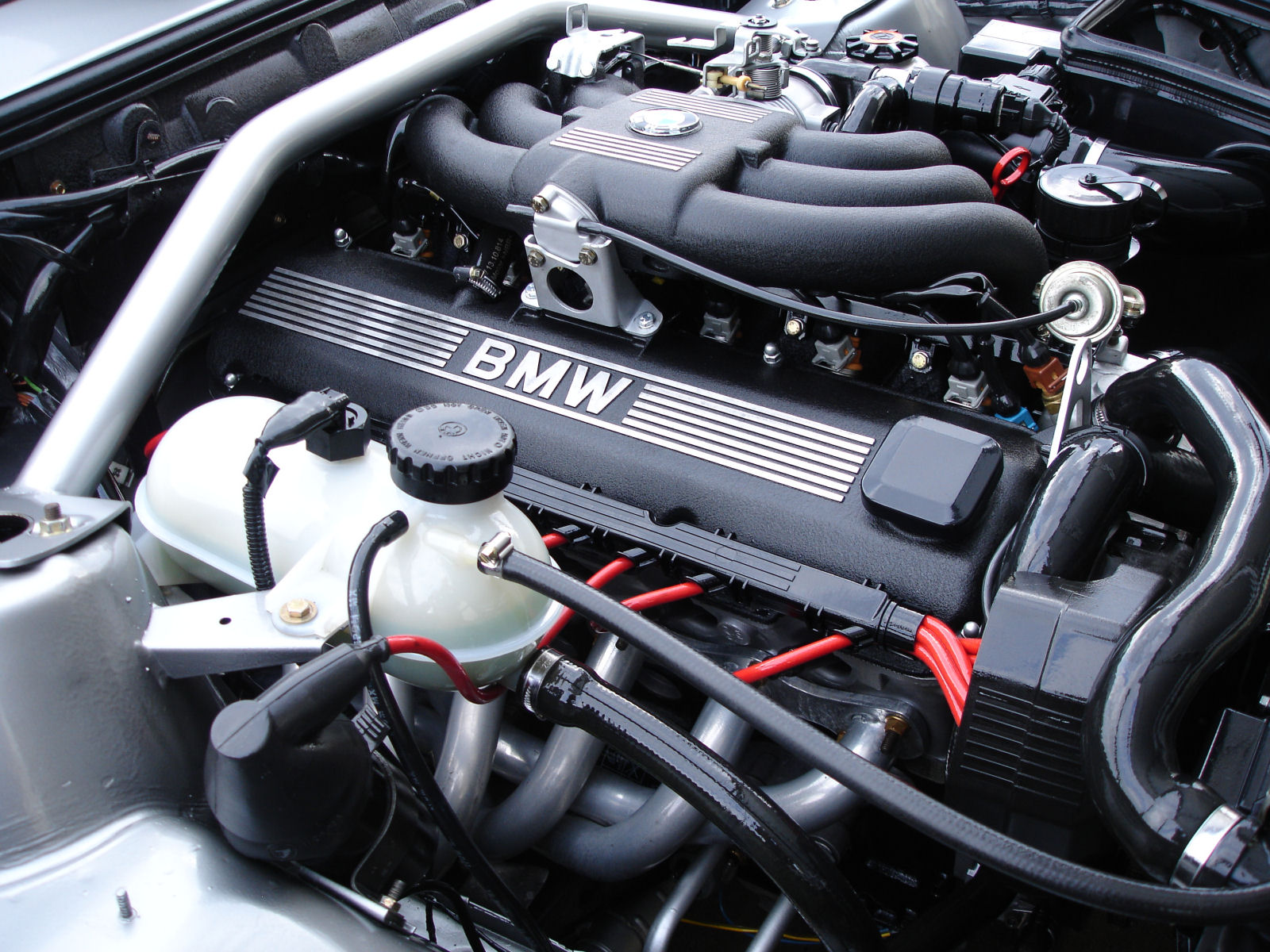

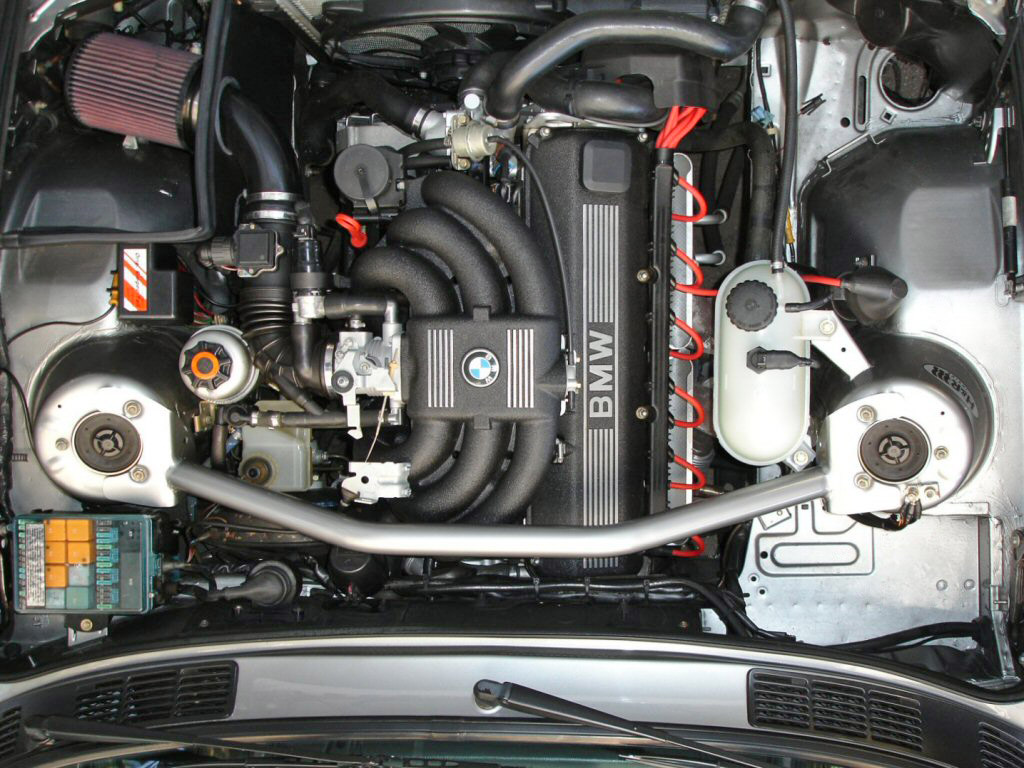

Engine: The engine in this e30 is a hand built 2.8L "stroker" engine. No expense spared, and the single highest specific output NA m20 I am aware of in the country. The engine is properly tuned with Unichip engine management, and with the HFM conversion and lightweight flywheel it really does feverishly rip to redline gear after gear. Idle is slightly lumpy, but is still quite steady and perfectly suitable for use on the street. I use high quality non-synthetic oils in it, and change it every 2500mi or less. I did try 5-w50 Castrol Syntec for about 4000mi but switched back because of excessive consumption, the design and gapping on the TotalSeal oil ring is not setup with such a thin oil in mind.

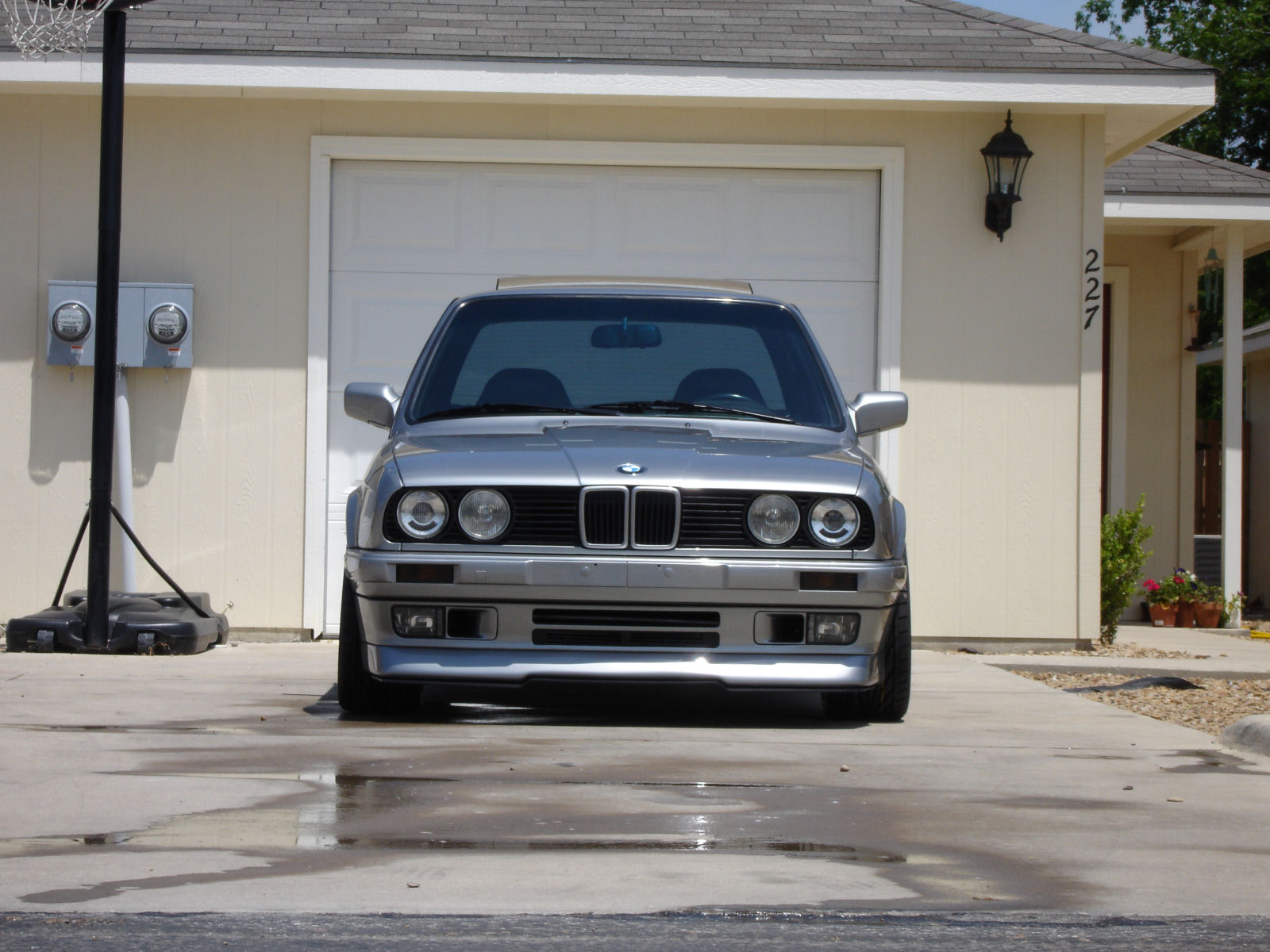

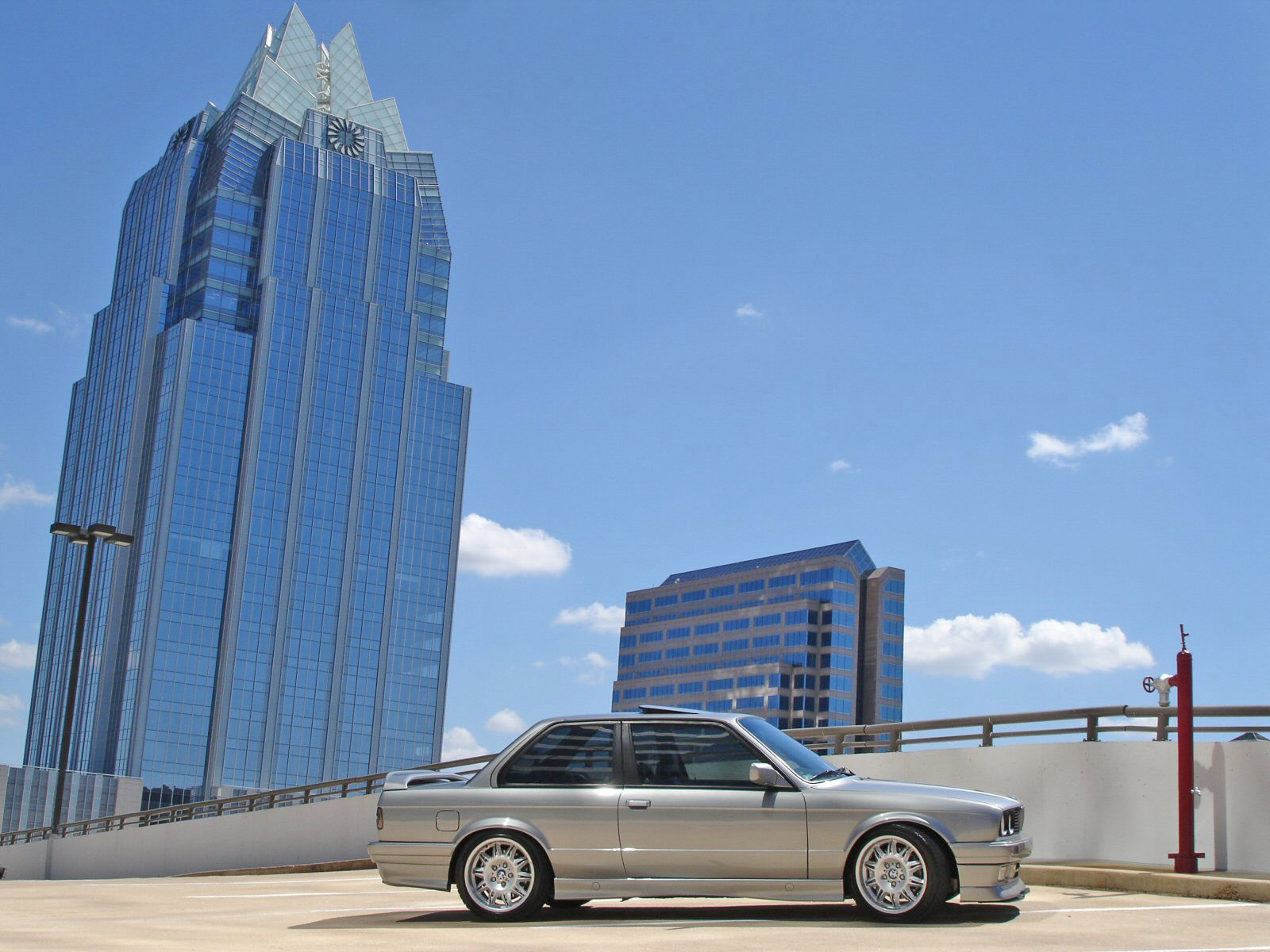

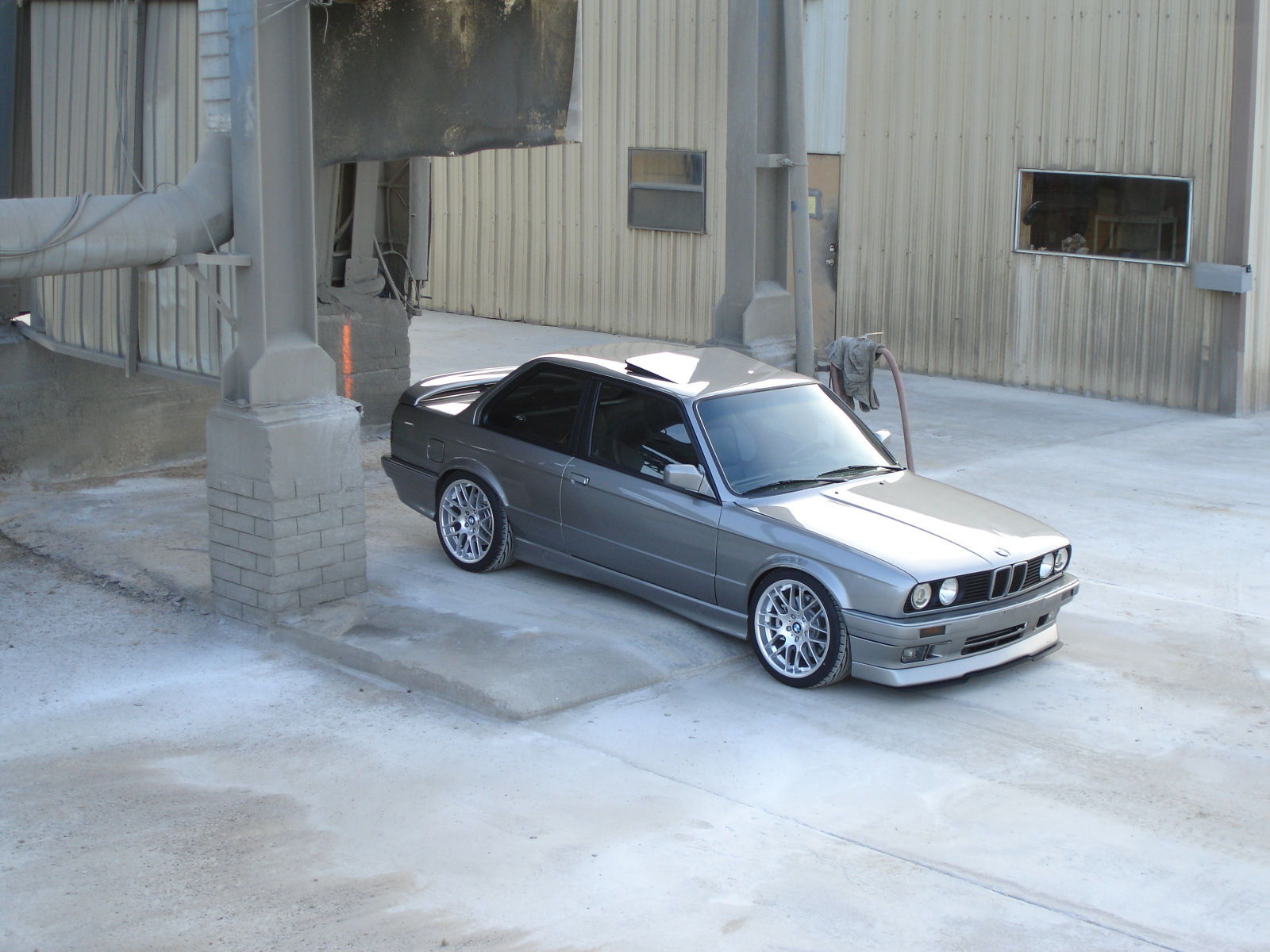

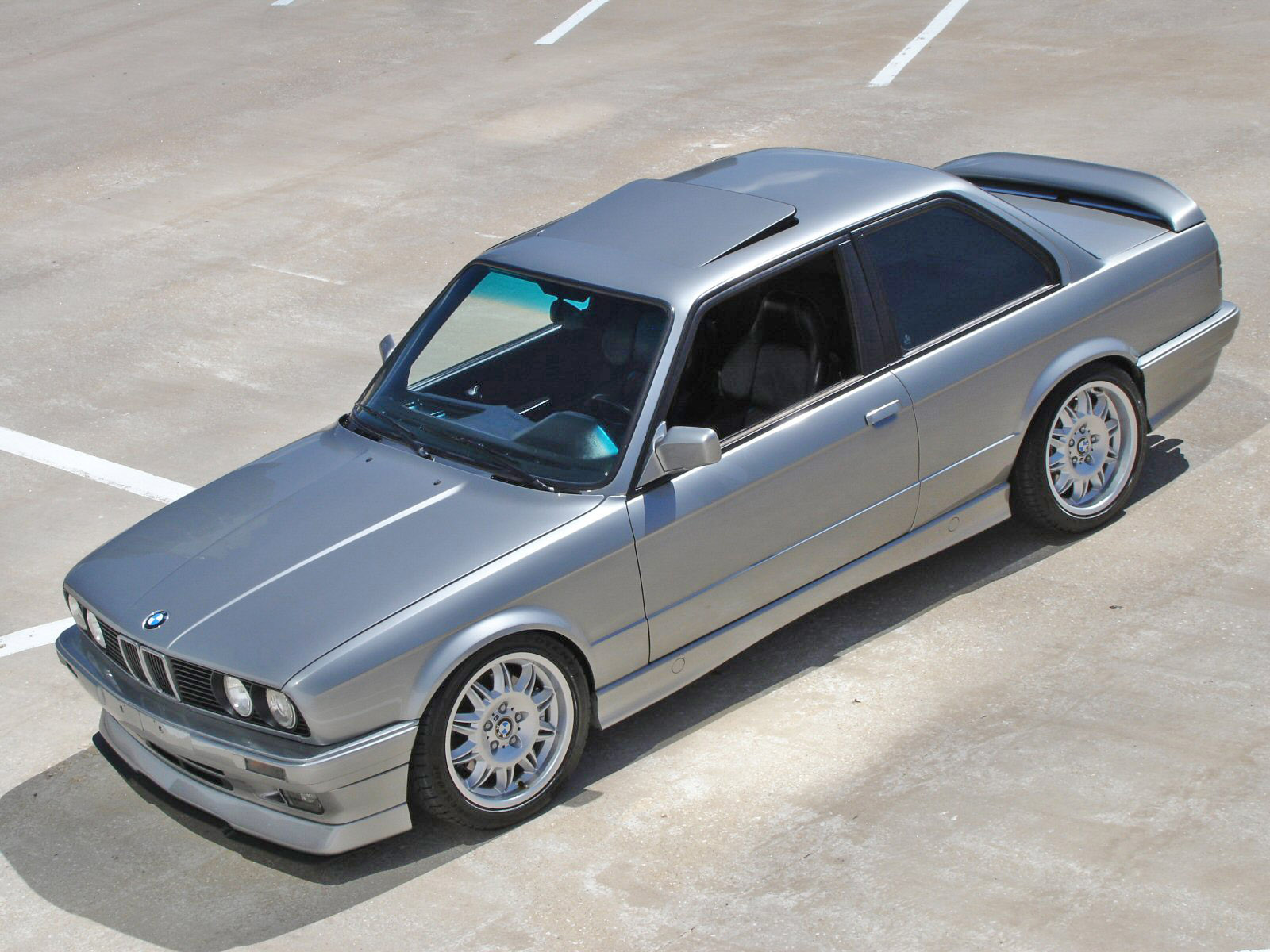

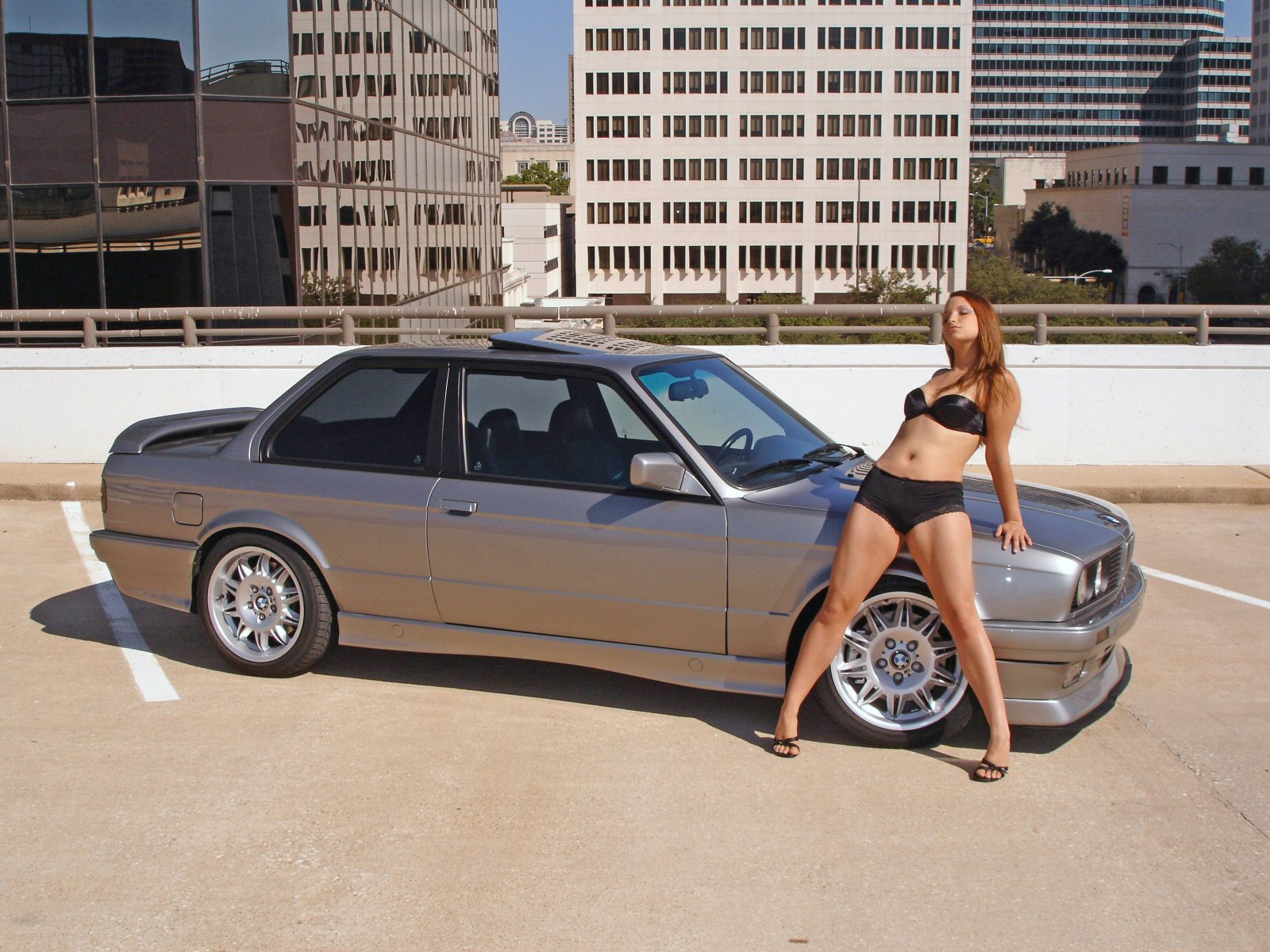

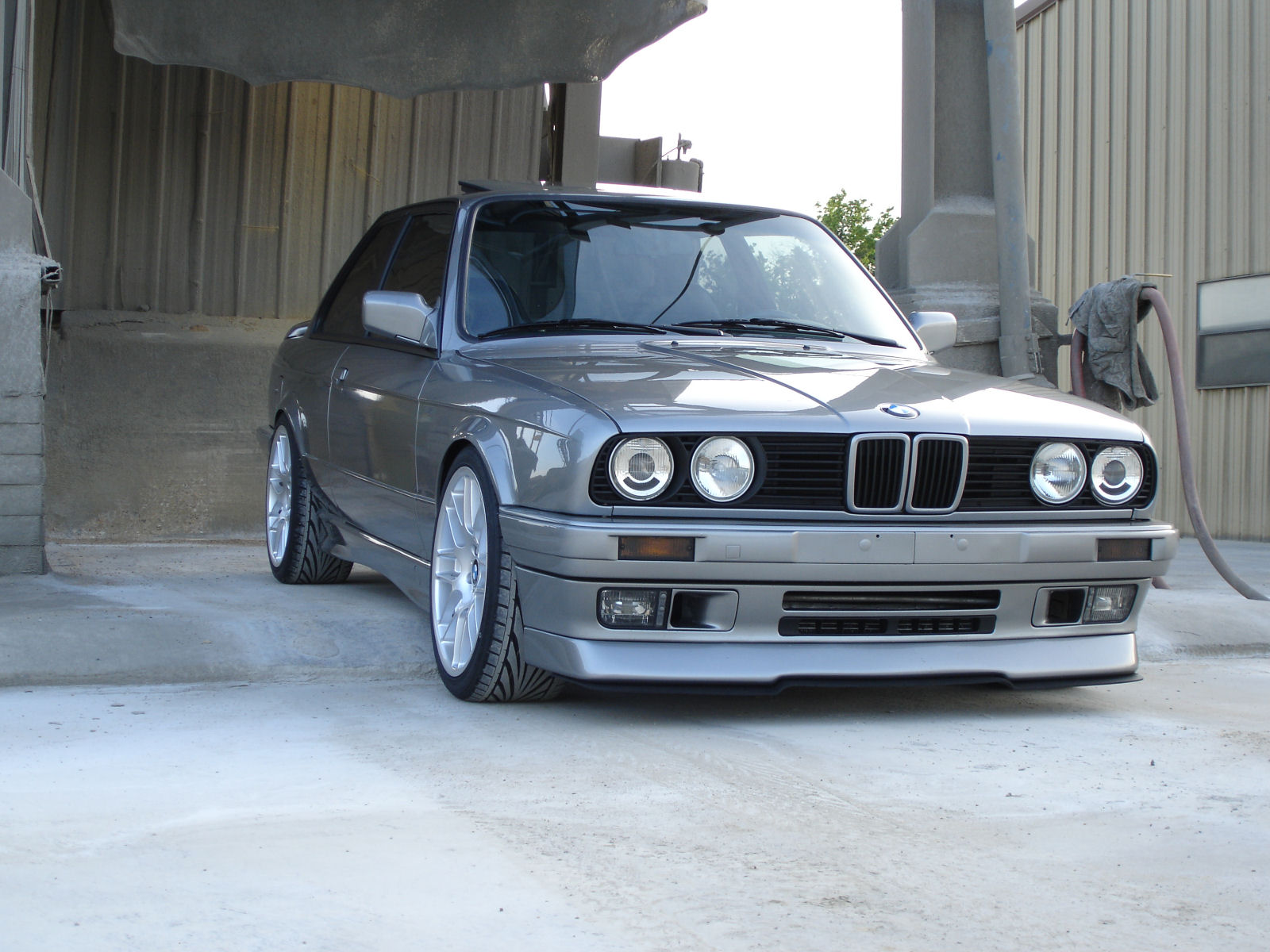

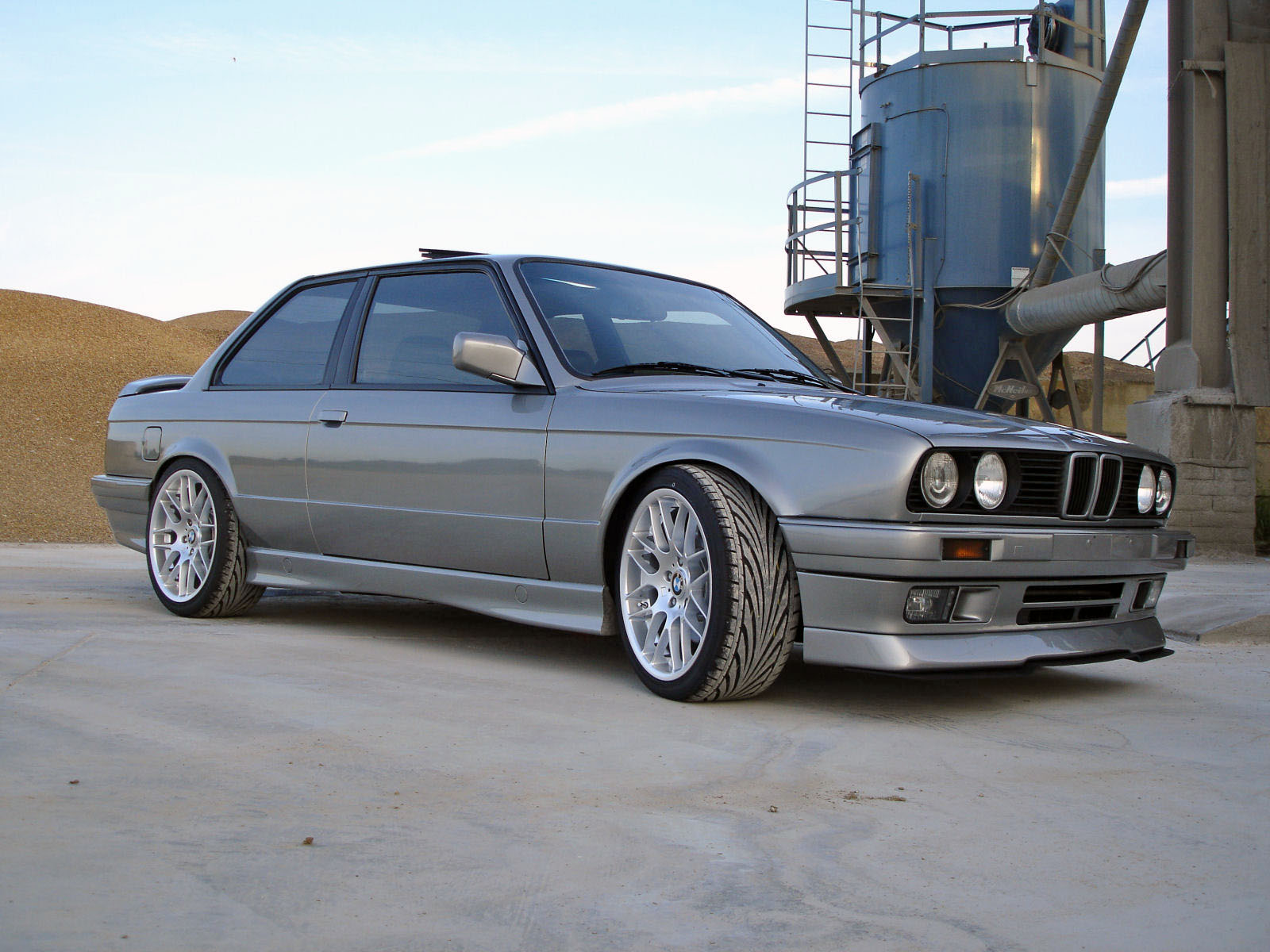

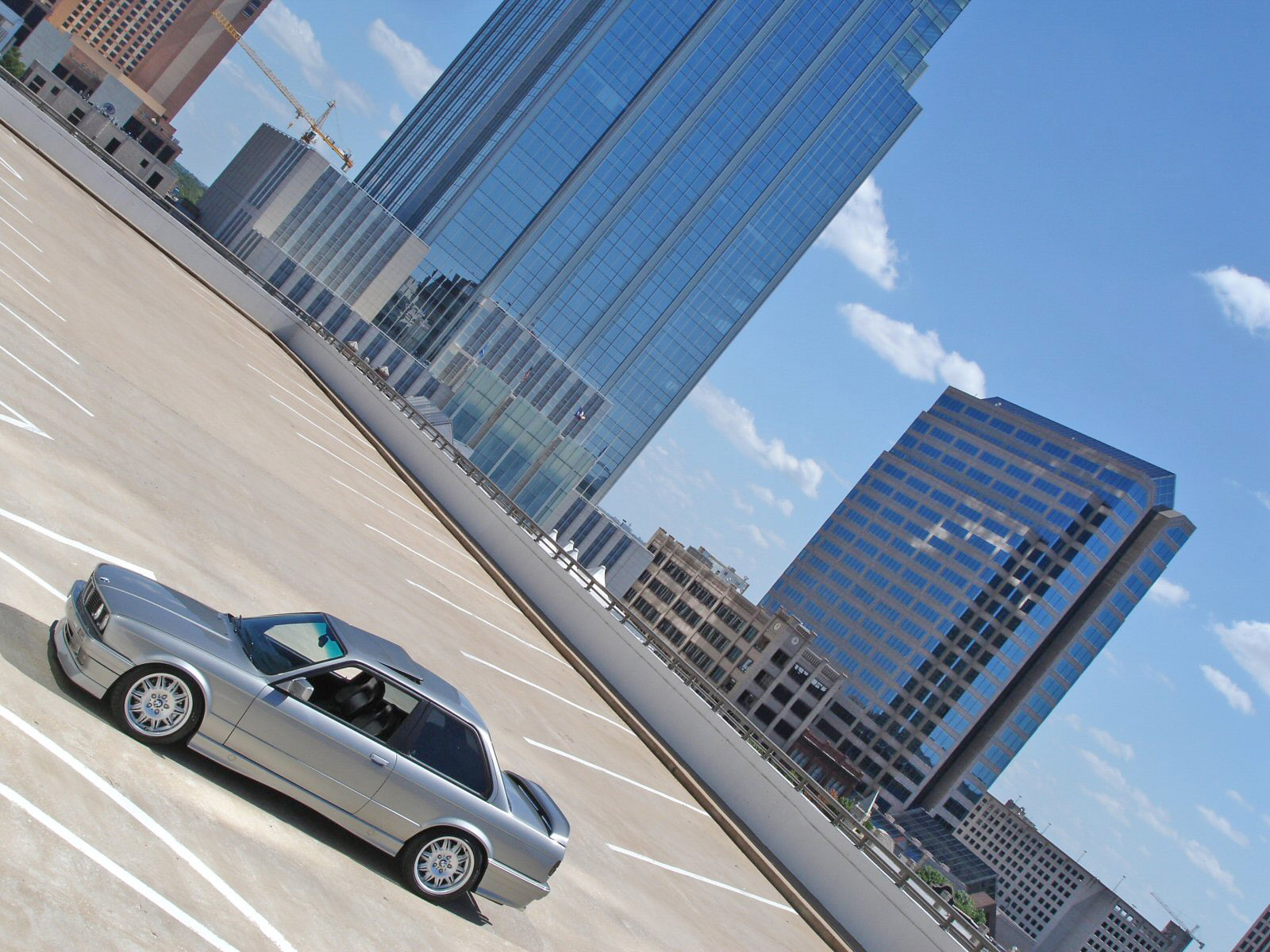

Exterior: The exterior really is everyone's favorite part isn't it? This is no exception. I could never really find a bodykit that I genuinely liked and felt looks appropriate so I picked and chose parts from newer BMW and reshaped/remolded them to fit my application. The end result is nothing short of stunning, and is definitely 100% unique. This car turns heads all day long, and believe it or not gets zero attention from the local police. It does not exude the "look at me" qualities that ricers do.. for example. I've had many enthusiasts chase after me hoping to get a couple questions in, or get me to pull over so they can have a good long look at the vehicle. Its really quite a treat to drive and be seen in. Everything tasteful you can really think to do has been done, and then some. The M-Doublespoke II wheels shown in the shoot with Misty below are not included with the car! They were replaced with the CSL replicas.

Suspension: Alot of extensive work has been done to the suspension. The car truly does handle like it is on rails. It will push well over 1.0 lateral G on a skid pad with the currently equipped wheels and tires. If one was to add some nice R comps for track usage this car could be a devastatingly effective tool. The heart of the suspension would be the Ground Control coilovers and the Koni SA dampeners. While very firm they still ride surprisingly well. Highway cruising isn't brutal, and around town is more then livable. Some have no doubt noted the conversion to 5lug, and the accompanying big brakes front and rear. MZ3 trailing arms were used in the rear for the enforcements and massive brakes. e30 M3 front strut housings used in front for proper geometry. None of that halfass caster challenged e36 M3 strut housing crap here. Wheels are 18x8.5 e46 M3 CSL replicas made by Velocity Motoring. Tires are 245/35R18 Toyo T1R all around. Tires have 90% or better tread. No track days, burnouts, "drifting" or other assorted abuse on these tires. Coilovers are currently set as low as they go in the rear, and about 1/2in up from as low as possible in the front. Rear wheels/tires do not rub on the fenders under any circumstances, front tires will rub on the fender lip (rolled so it will NOT catch) under extreme cornering. Because of the sheer size of the front wheels and tires they do rub the inner wheel well rails at full lock. A small amount of your turning circle is sacrificed in the name of handling. Parking etc is not an issue.

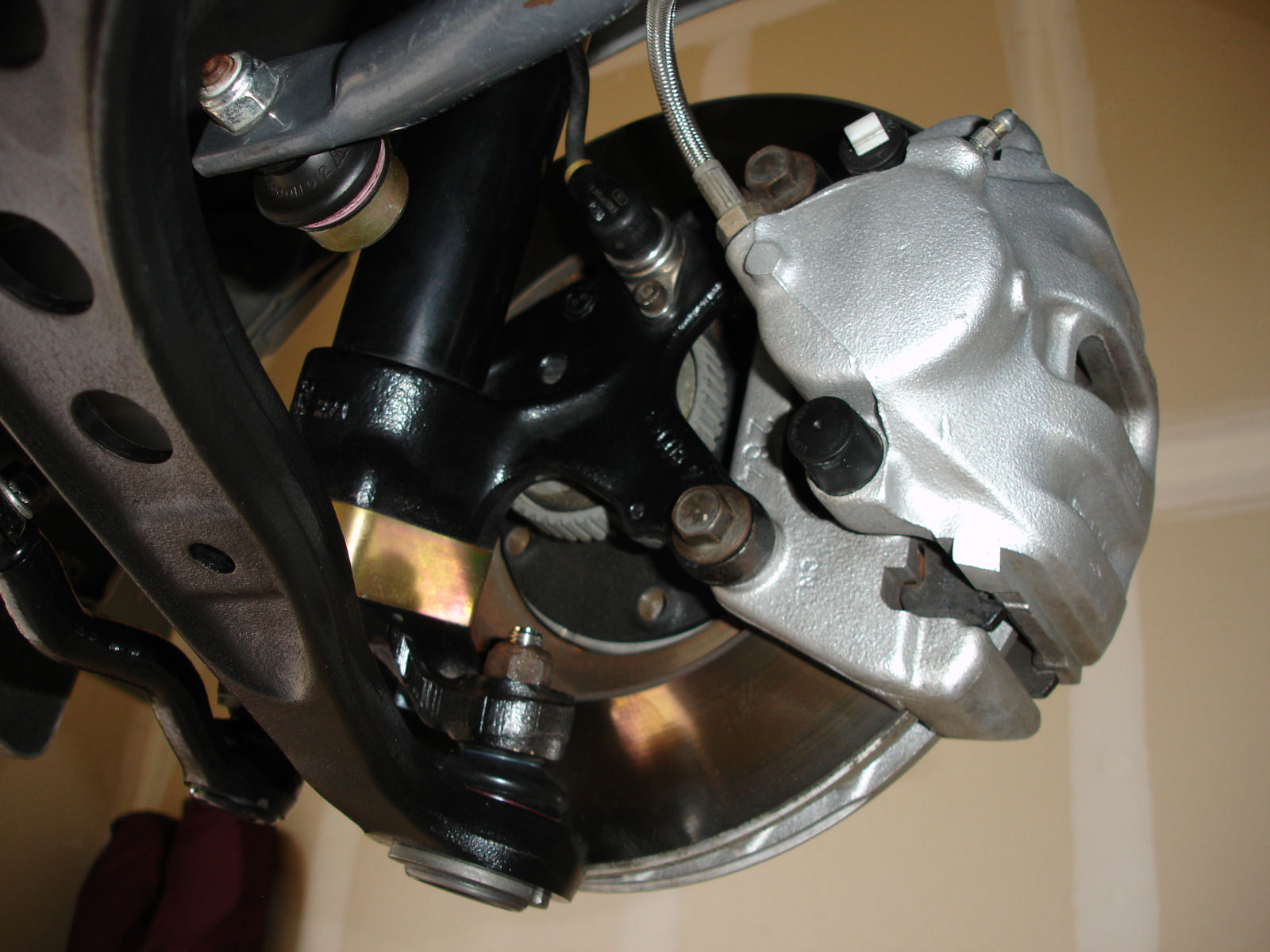

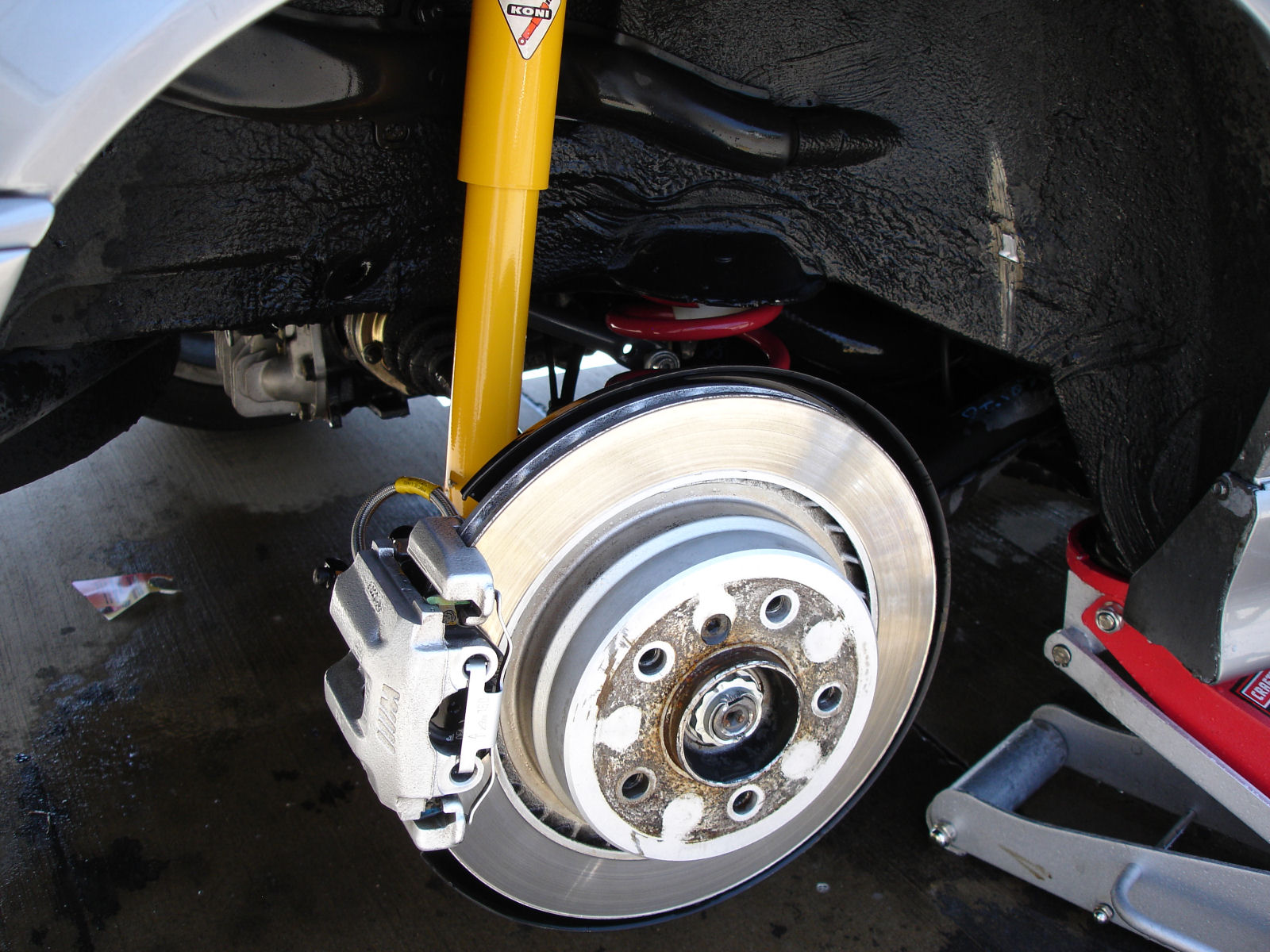

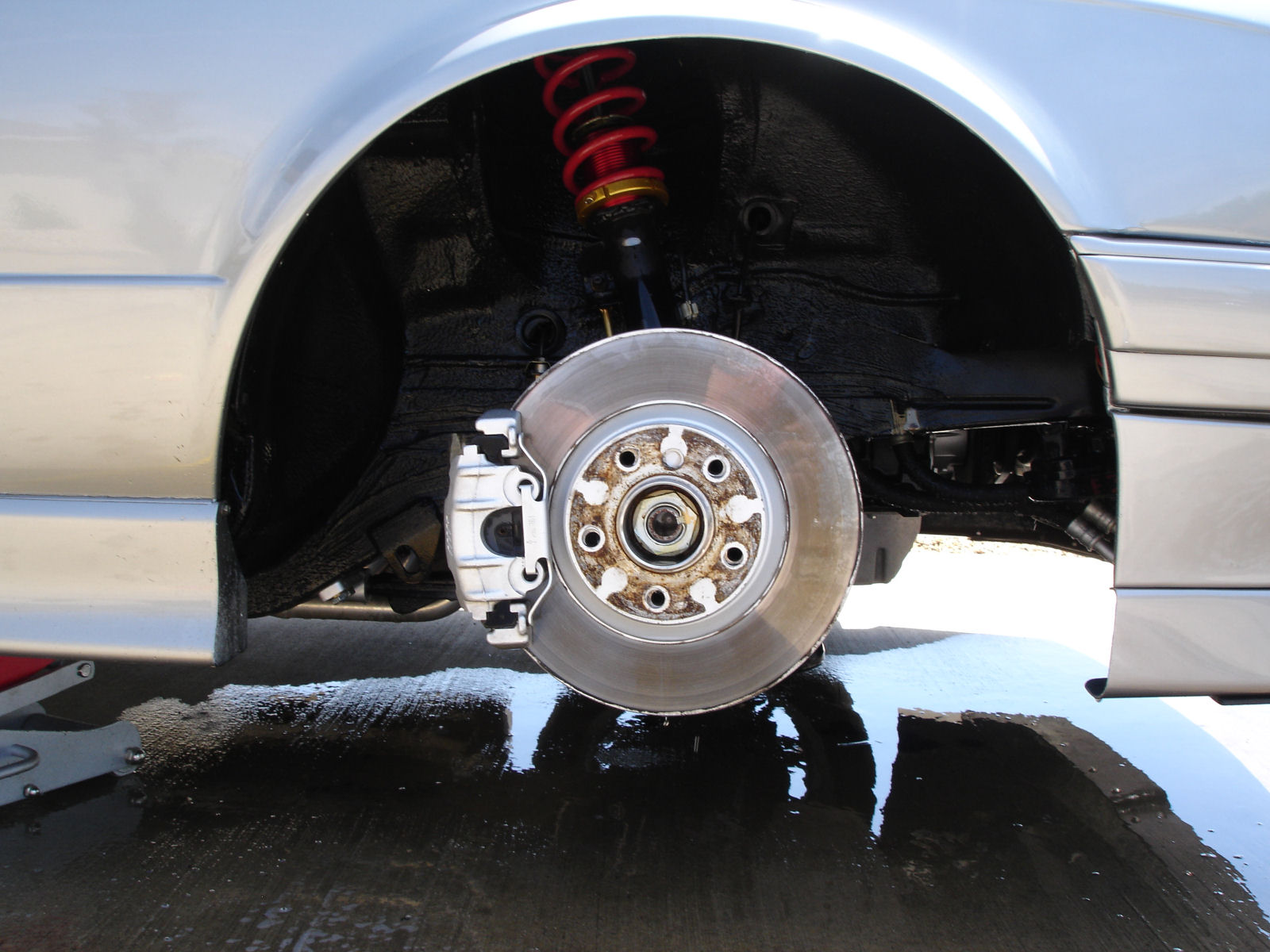

Brakes: The brakes have got to be one of my most favorite parts of the car. Its really hard to decide, but they are definitely up there. The front and rear rotors are identical to stock e36 M3 units (same part numbers and all) Front calipers are e36 M3, and rear calipers are slightly different then e36 M3, but feature the same piston diameter and pad surface area. Anyone who has every had the opportunity to drive a e36 M3 up to speed and stand on the brake pedal knows how monstrously fast those brakes bring the car back to sane speeds. Now imagine the same brakes, attached to 500+lbs less car. Plain and simple these are variable anchors. I've never been able to make them fade, and they will engage the fully functional ABS if you stand on it well over 130mph. Pads are currently OE Jurid rear, and OE Pagid front. Saw no need for more aggressive pads, but that is certainly an option. All 4 calipers were completely disassembled, degreased, bead blasted, washed, honed, and resealed/rebuilt with new seals, guides, etc.

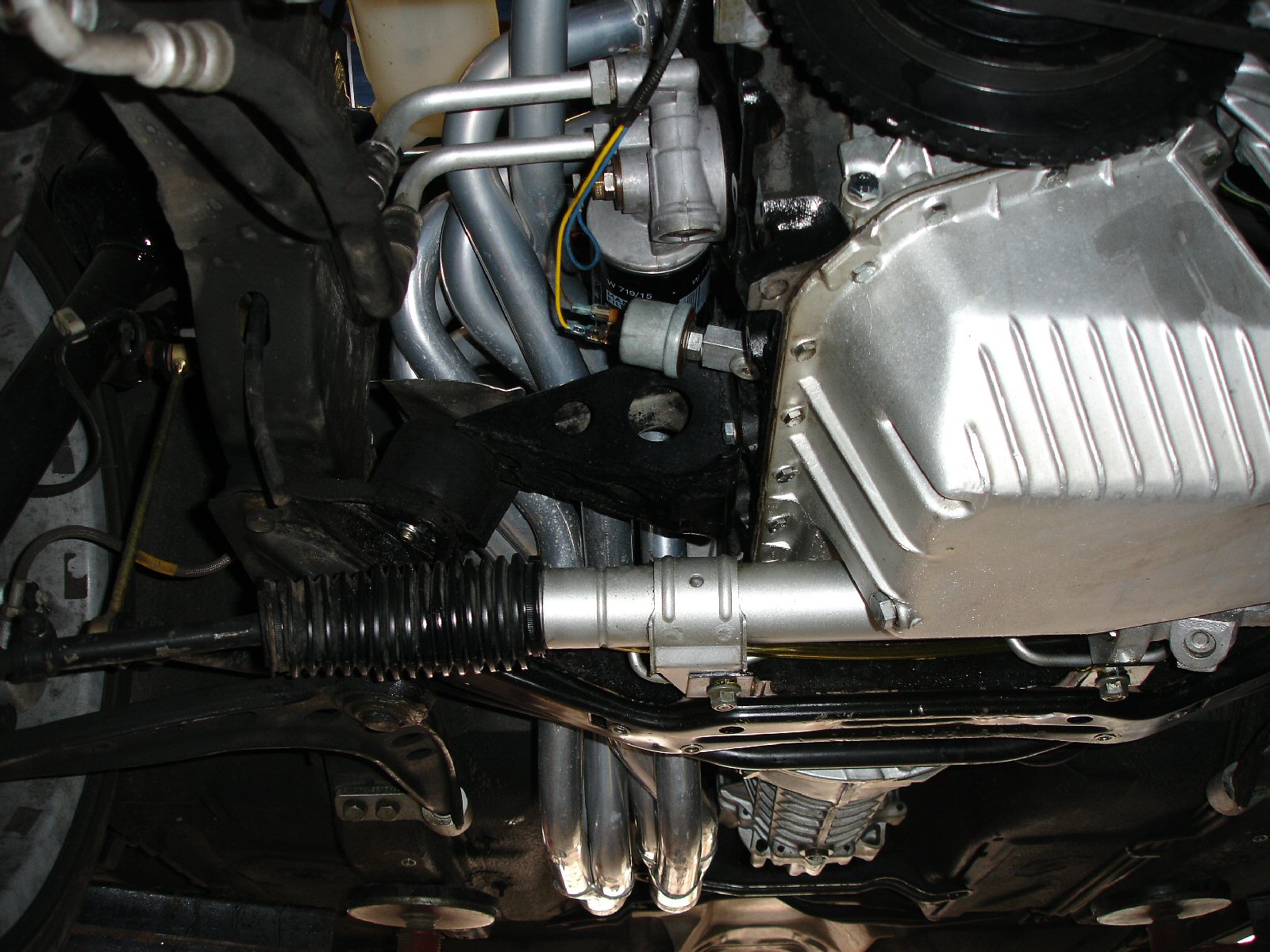

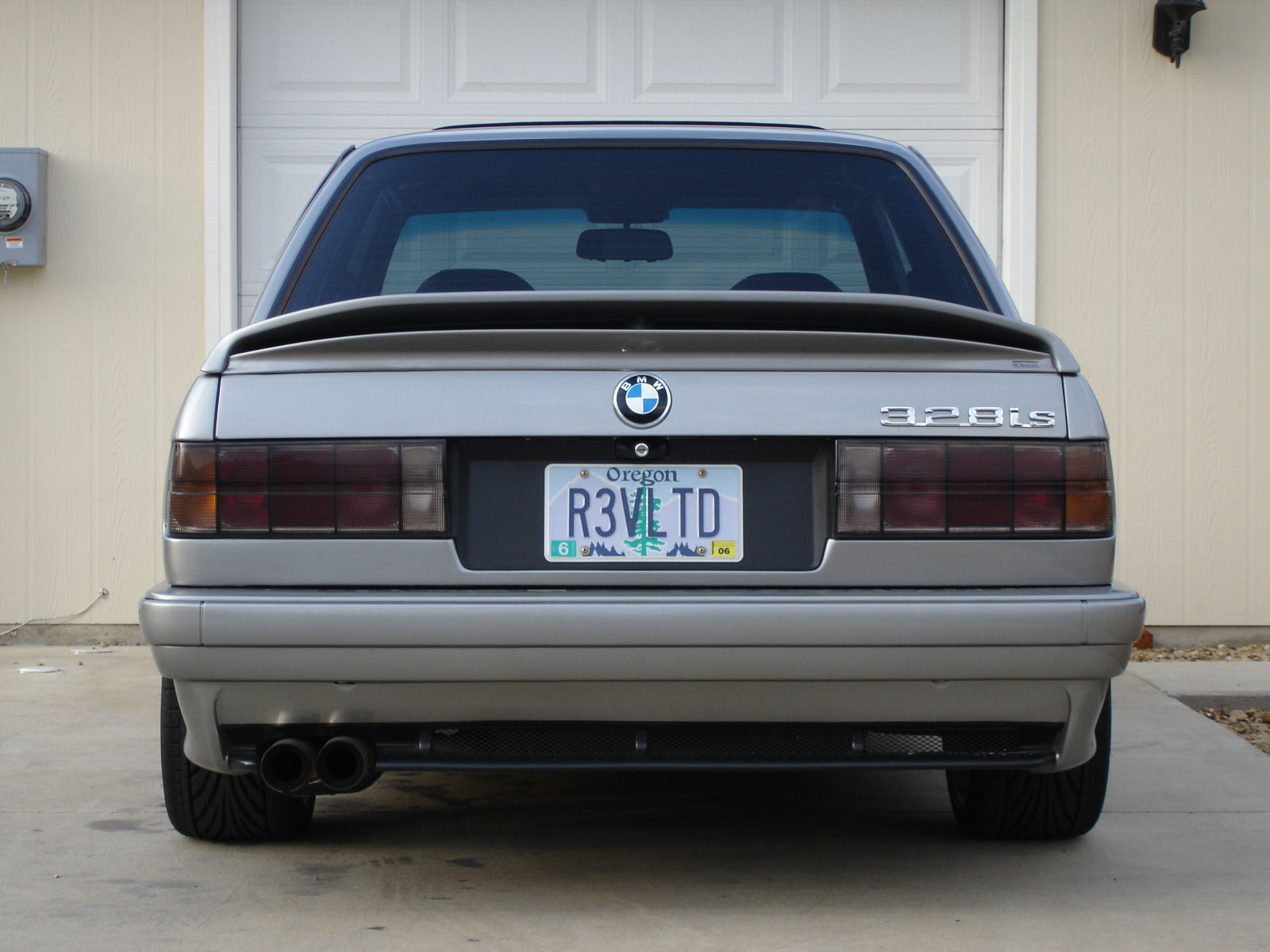

Drivetrain and Exhaust: The drivetrain is mostly stock, there is not a whole lot to improve upon here in any application I every planned for the car. I have fitted a 4.10:1 LSD, lightweight flywheel, 6 puck unsprung metallic clutch, and beefy MZ3 halfshafts. The shifter linkage has been modified to keep it very tight by using brass bushings instead of rubber and plastic. The exhaust is highly modified. Fully Jethot coated headers and catless midpipes. Custom bent pipes into a dual in/out straight through Brullen muffler that is more of a resonator at this point. This exhaust does NOT exhibit any of the rasp characteristic of ricers. It is VERY open and free flowing, and is loud, but not so loud as to constantly attract attention from law enforcement. I have never been pulled over, ticketed, etc for the exhaust. I don't expect you will either unless you rip past a cop at WOT.[list=][/list]
Prílohy
BMW F15 40d
Ford mondeo mk4
BMW E91 318d EX
BMW F07 530d EX
BMW E61 530DT A/T EX
BMW e53 4,8is EX
BMW e53 4,6is EX
BMW e36 323i coupe EX
BMW e30 325i coupe EX
BMW e34 520iA sedan EX
BMW e46 323i sedan EX

Užívateľov profilový obrázok
Kraken
Príspevky: 2680
Registrovaný: 4.3.2007
Auto: E36 E30 E30
Kraj: Prešovský
Bydlisko: Stará Ľubovňa

Pondelok, 18. Februára 2008, 23:15

sa nezdáš snoo, ide ti dobre tá angličtina :lol:

krásne auto, len keby na niektorých fotkách tá ženská nezavadzala :evil: :lol:
BMW E36 320i Sedan LPG
BMW E30 318i Sedan
BMW E30 316i Sedan

Užívateľov profilový obrázok
Helldiver
Príspevky: 2181
Registrovaný: 10.6.2007
Auto: E90 330d M-paket
Kraj: Bratislavský

Pondelok, 18. Februára 2008, 23:26

Tak to je vonava vonavka najvonavsia, z toho motoru a priestoru okolo proste nemozem :shock: . Inac aky ma ten 2.8 teda vykon?
EX E30 325i limo 89' Deplhingrau
EX E34 535i 92' Schwarz
EX E34 535iA 91' Diamantschwarz
EX E46 328ci 2000' Silber
E90 330d 2007' M-paket

Užívateľov profilový obrázok
snoo
Autor témy
Príspevky: 772
Registrovaný: 9.8.2007
Kraj: Košický
Bydlisko: cassa

Pondelok, 18. Februára 2008, 23:35

CAR PERFORMANCE SPECIFICATIONS

Engine Displacement:......2759 cc.
Engine Location:..........FRONT
Engine Type:..............NA 12-Valve SOHC Inline 6
Engine Horsepower:........192.24 RWHP @ 5700 rpm
Engine Torque:............196.93 RWTQ @ 4425 rpm
Compression Ratio:........10.2:1
Maximum engine speed:.....7100/6750 rpm
BHP/Litre:................ 83.21
Power to weight:.......... 11.58

Final drive ratio:........4.10 :1 (Limited Slip)
Curb weight weight:.......2743 lb.

Tire size:................245/35 F, 245/35 R
Wheel diameter/width:.....18x8.5 F, 18x8.5 R
Lateral Acceleration:.....1.0 G's +

Brakes, front:............315x28mm vented, single piston
Brakes, rear:.............312x20mm vented, single piston
Distance, 60-0MPH.........Less then 101ft

STANDING START ACCELERATION

Time to Speed:
0- 30 mph..............1.5 sec.
0- 40 mph..............3.0 sec.
0- 50 mph..............3.9 sec.
0- 60 mph..............5.8 sec.
0- 70 mph..............7.1 sec.
0- 80 mph..............9.4 sec.
0- 90 mph..............11.4 sec.
0-100 mph..............13.7 sec.

Time to Distance:
0- 100 ft..............2.8 sec.
0- 500 ft..............7.7 sec.
0-1320 ft.(1/4 mile)...14.0 sec.@ 101.5 mph

Top Speed..............141.2 mph (gear limited)
BMW F15 40d
Ford mondeo mk4
BMW E91 318d EX
BMW F07 530d EX
BMW E61 530DT A/T EX
BMW e53 4,8is EX
BMW e53 4,6is EX
BMW e36 323i coupe EX
BMW e30 325i coupe EX
BMW e34 520iA sedan EX
BMW e46 323i sedan EX

Užívateľov profilový obrázok
TiTAN
Administrátor
Príspevky: 2370
Registrovaný: 1.8.2006
Auto: BMW 530d xDrive
Kraj: Žilinský
Bydlisko: Ružomberok

Pondelok, 18. Februára 2008, 23:45

ty wole to je sila to ako keby vysla z tovarne prave
Ex BMW 325TDS bostongreen [TiTAN's Diesel Supermachine]

I´m not a trendy asshole, do what I want, do what I feel like! (c) Dexter Holland
I choose to live, not just exist (c) James Hetfield

Užívateľov profilový obrázok
mascom
Príspevky: 410
Registrovaný: 30.11.2006
Auto: BA3 2101
Kraj: Košický
Bydlisko: Košice

Utorok, 19. Februára 2008, 00:03

kraaasa

Užívateľov profilový obrázok
snoo
Autor témy
Príspevky: 772
Registrovaný: 9.8.2007
Kraj: Košický
Bydlisko: cassa

Utorok, 19. Februára 2008, 10:13

Obrázok
BMW F15 40d
Ford mondeo mk4
BMW E91 318d EX
BMW F07 530d EX
BMW E61 530DT A/T EX
BMW e53 4,8is EX
BMW e53 4,6is EX
BMW e36 323i coupe EX
BMW e30 325i coupe EX
BMW e34 520iA sedan EX
BMW e46 323i sedan EX

Užívateľov profilový obrázok
Peppo
Príspevky: 2216
Registrovaný: 7.3.2007
Kraj: Bratislavský
Bydlisko: Bratislava

Utorok, 19. Februára 2008, 11:19

slecna mohla byt aj chudsia.... stehna a zadok....

Užívateľov profilový obrázok
snoo
Autor témy
Príspevky: 772
Registrovaný: 9.8.2007
Kraj: Košický
Bydlisko: cassa

Utorok, 19. Februára 2008, 14:01

aspon mas za co chytit :) a ja som to nefotil no hlavna je ta e30-ka nie slecna ;)
BMW F15 40d
Ford mondeo mk4
BMW E91 318d EX
BMW F07 530d EX
BMW E61 530DT A/T EX
BMW e53 4,8is EX
BMW e53 4,6is EX
BMW e36 323i coupe EX
BMW e30 325i coupe EX
BMW e34 520iA sedan EX
BMW e46 323i sedan EX

Užívateľov profilový obrázok
m4x
Príspevky: 2229
Registrovaný: 15.12.2007
Auto: E60 545i
Kraj: Bratislavský
Bydlisko: Pressburg - Long parts

Utorok, 19. Februára 2008, 15:06

slecna to tam kazi, ale nenormalny kusok, proste nadhera :shock:
!!! Obrázok ???

Pežot

Utorok, 19. Februára 2008, 15:34

Snoo aspoň si to mohol preložiť :lol: :lol:

Užívateľov profilový obrázok
snoo
Autor témy
Príspevky: 772
Registrovaný: 9.8.2007
Kraj: Košický
Bydlisko: cassa

Utorok, 19. Februára 2008, 16:15

ked bude casu tak prelozim ;)
BMW F15 40d
Ford mondeo mk4
BMW E91 318d EX
BMW F07 530d EX
BMW E61 530DT A/T EX
BMW e53 4,8is EX
BMW e53 4,6is EX
BMW e36 323i coupe EX
BMW e30 325i coupe EX
BMW e34 520iA sedan EX
BMW e46 323i sedan EX

Pežot

Utorok, 19. Februára 2008, 16:17

Mno jo ... po anglicky až tak dobre neviem ... ale inak pekné auto ale tá "ženská" je špatná jak noc v chotáry :roll: :roll: :roll:

Užívateľov profilový obrázok
kouBaMW
Príspevky: 1644
Registrovaný: 12.10.2007
Auto: pár rezavých ešusů
Kraj: Zahraničie
Bydlisko: Vsetín

Utorok, 19. Februára 2008, 16:50

velmi velmi velmi nádhérné :!:

Užívateľov profilový obrázok
BlackMW
BMW Waffenschmiede Pressburg
Príspevky: 3508
Registrovaný: 21.5.2007
Auto: E38
Kraj: Bratislavský
Bydlisko: Bratislava

Utorok, 19. Februára 2008, 17:27

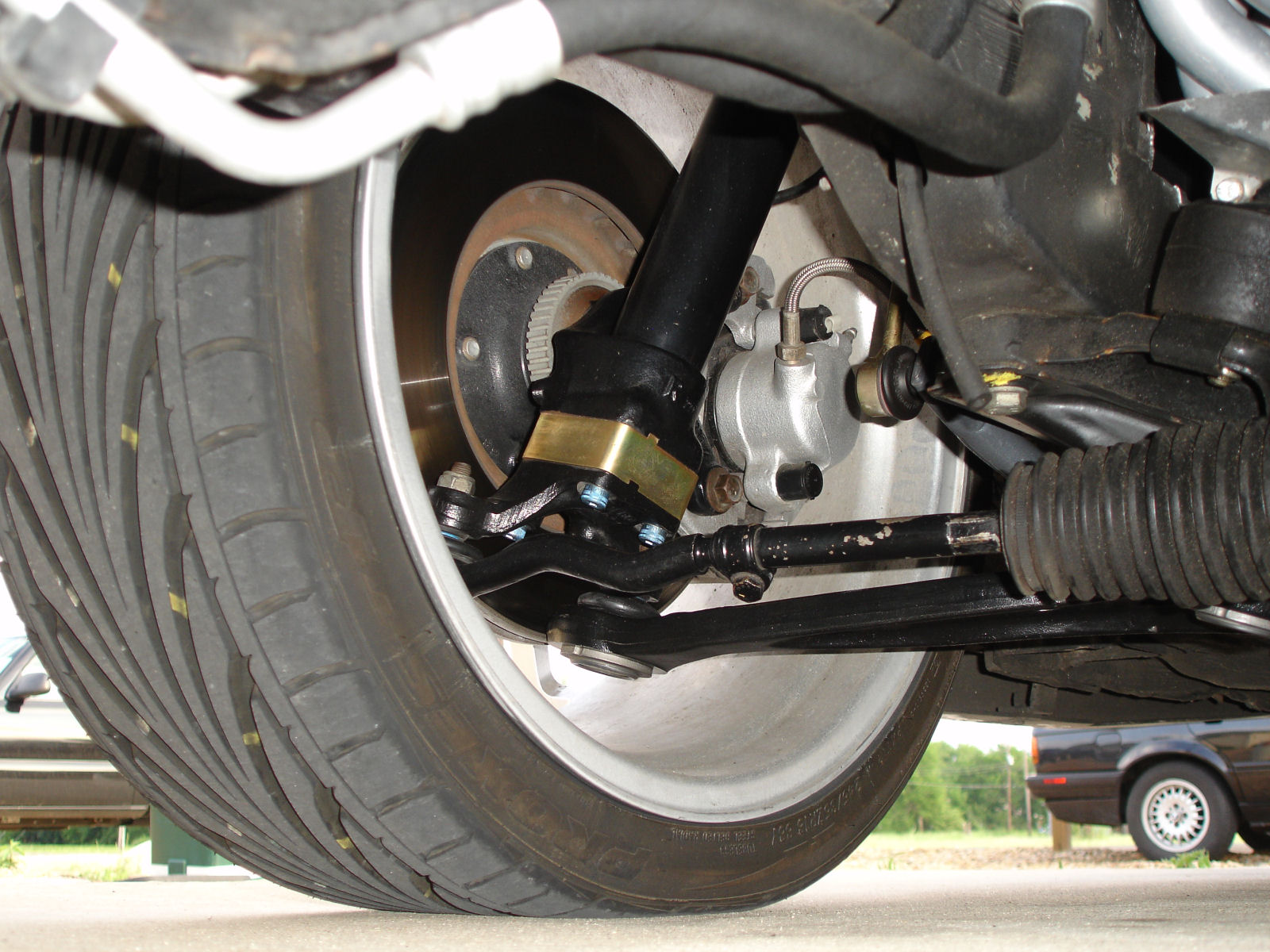

na poslednej foto ma zaujal zadny uchyt predneho ramena.
Nejak mi tam chyba silentblok, to musi byt tvrde jak kamen..
da sa take nieco zohnat hotove ?
same shit, different day..
There's no replacement for displacement..
Aké krásne ticho by bolo na svete, keby ľudia hovorili len to, čo vedia.
